Webcore

Overview

WebCore is a feature designed to ensure UI and functional consistency across Android, iOS, and Web SDKs. This is achieved by using a common logic and UI layer across all SDKs.

Previously, business logic and UI were maintained separately across platforms, requiring platform-specific updates. To simplify this, we centralized business logic and UI on the web platform, leveraging WebView to seamlessly integrate it across platforms.

Currently integrated into WebCore: form, API, and webView modules. Still native: modules requiring hardware interactions (camera, NFC) remain native for optimal performance.

Prerequisites

• Basic understanding of HyperVerge SDKs
• Knowledge of WebView basics
• Access to HV Central Config repository

Purpose & Use Case

WebCore resolves:

• UI inconsistencies across Android, iOS, and WebSDK
• Workflow behavior differences when workflows behave differently across platforms (e.g., conditions executing differently)
• exitOnEndStatesProperty consistency across all platforms
• Server Side Resume (CPR) issues on Android and iOS SDKs

Setting Up

How to Enable WebCore

Add the remote configuration against the appID at this path in hv-central-config.

Recommended WebCore Versions

Android SDK	iOS SDK	Supported WebCore	Default WebCore
0.30.*	0.30.*	8.10.*	Android: 9.0.0-alpha / iOS: 9.0.0-alpha
0.31.*	0.31.*	8.10.*	Android: 9.0.0-alpha / iOS: 9.0.0-alpha
0.32.* - 0.34.*	0.32.* - 0.34.*	8.10.*	Android: 8.10.1 / iOS: 8.10.1
0.35.* - 0.37.*	0.35.* - 0.37.*	8.11., 8.12., 8.13.*	Android: 8.11.0 / iOS: 8.11.0
0.38.*	0.38.*	8.13.*	Android: 8.11.0 / iOS: 8.11.0
0.39.*	0.39.*	8.14.*	Android: 8.14.0 / iOS: 8.14.0
0.40.*	0.40.*	8.14.*	Android: 8.14.2 / iOS: 8.14.2
0.40.1-2	0.40.1	9.1.0, 9.2.0	Android: 9.1.0 / iOS: 9.1.0
0.41.0	0.41.0	9.2.1	Android: 9.2.1 / iOS: 9.1.0
0.43.0, 0.44.0	0.43.0, 0.44.0	9.3.0, 9.3.1	Android: 9.3.0 / iOS: 9.3.0
0.45.0	0.45.0	9.4.0	Android: 9.4.0 / iOS: 9.4.0
0.45.1-3	0.45.2	9.4.1, 9.5.0, 9.6.0	Android: 9.4.1 / iOS: 9.4.1
0.46.0	0.46.0	≥ 9.7.0	Android: 9.7.0 / iOS: 9.7.0
0.47.0, 0.47.4	0.47.0	≥ 9.9.0	Android: 9.9.0 / iOS: 9.7.0
1.0.0 - 1.0.2	—	≥ 9.9.0	Android: 9.9.0
1.1.0	—	≥ 9.9.0	Android: 9.15.1
2.0.0, 2.0.1	—	≥ 9.9.0	Android: 9.15.1

Sample WebCore Configuration

{
  "webCore": {
    "enable": true,
    "version": "9.0.0",
    "override": {
      "android": {
        "0.31.1": {
          "enable": false
        },
        "0.30.2": {
          "enable": true,
          "version": "9.1.0"
        }
      },
      "ios": {
        "0.31.2": {
          "enable": true
        }
      }
    }
  }
}

JSON Structure:

• webCore.enable — whether WebCore is enabled
• webCore.version — default WebSDK version
• webCore.override — platform-specific overrides
  • Android/iOS keys with SDK version keys inside
  • Each can have its own enable and version

Important Considerations

• WebCore has preference over WebForm — all forms are loaded from webSDK in a webView regardless of the useWebForm property
• Ensure WebCore version is compatible with the corresponding SDK version

Known Issue: Android SDK ≤ 0.39.1

There was an issue where having different webCore versions for different SDK versions is not possible. Android SDK version-specific overrides will cause a crash on these versions.

Benefits of WebCore

• Eliminates logic duplication across Android, iOS, and Web
• Ensures consistent behaviour across platforms
• Leverages the full power of a single platform (Web)
• Reduces development effort and simplifies maintenance

Setting Custom Fonts

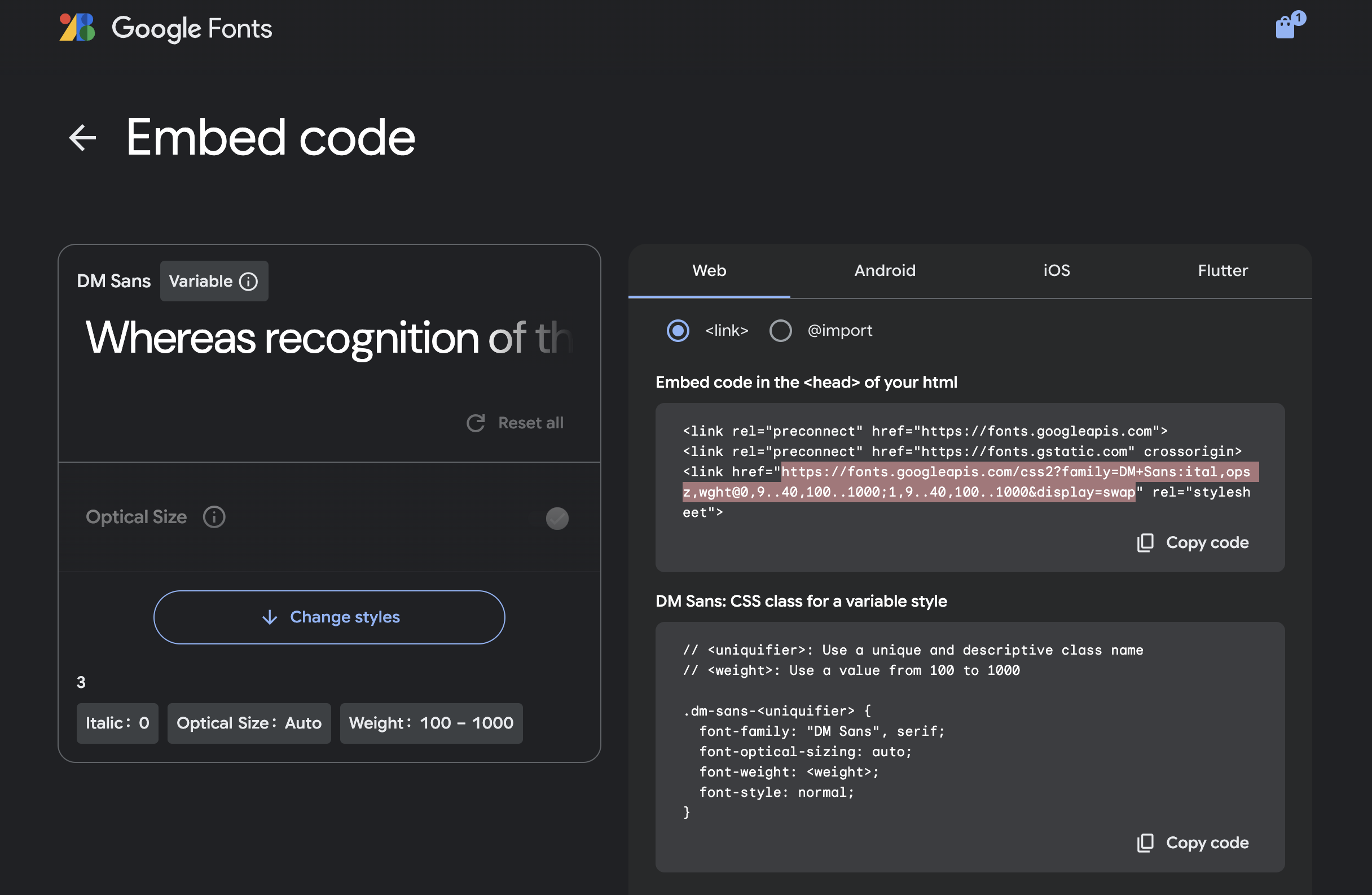

WebCore allows custom fonts via font stylesheet URLs in the UI configuration.

How it works:

• Top-level property customFontStylesheetUrls stores the list of font stylesheet URLs
• Fonts are fetched dynamically and applied to WebCore modules

Example UI config:

{
  "customFontStylesheetUrls": [
    "https://fonts.googleapis.com/css2?family=Roboto:ital,wght@0,100..900;1,100..900&display=swap",
    "https://fonts.googleapis.com/css2?family=Montserrat:ital,wght@0,100..900;1,100..900&display=swap"
  ],
  "font": {
    "titleTextFont": "Roboto",
    "statusTextFont": "Montserrat"
  }
}

info

This applies only for WebSDK and WebCore. If mobileSDK uses WebCore:

• Only webCore modules (Forms, country picker, API modules) load fonts from customFontStylesheetUrls
• For native modules (doc, face), you still need to add font files in the app's asset folder

Debugging

Using Kibana

Identify if WebCore is being used

Check if req.headers.madefrom property is webCore.

Identify the WebSDK version used in WebCore

• req.headers.sdk-version — Mobile SDK version
• req.headers.sdkversion — Web SDK version

Using ADB (Android)

Inspecting WebSDK in WebCore mode

Requirements:

1. Debug Android APK (release APK cannot be debugged)
2. Chrome/Brave browser on PC
3. USB debugging enabled on Android device

See Chrome remote debugging docs for detailed steps.

Note: You can only inspect WebSDK-related things, not native modules (doc, face, NFC) or analytics API calls.

Debugging native modules

Follow the same procedure as debugging mobile SDKs without WebCore:

• Using Hunter app
• Demo/sample application
• Kibana and Metabase

Using Sentry

• Android Sentry project — for crashes from native Android SDK
• WebSDK-webCoreMode Sentry — for crashes from Web SDK
• If uncertain, check both with the transactionID filter

Common Issues

UI issues on any screen

Why Firefox specifically? Firefox behaves similarly to Android WebView for rendering. We were able to replicate almost all UI issues in mobile Firefox but not Chrome.

• Android: Try to replicate on Firefox browser → if not replicable, raise to mobileSDK team; if replicable, raise to webSDK team
• iOS: Try to replicate on Safari browser → same logic

Workflow crashing on WebCore but not on non-WebCore mode

Narrow down to the specific module using standard debugging methods (Hunter, Kibana, Metabase, or direct replication) and raise a query to the corresponding team.

SDK response not sent to parent app correctly

• Check Results API response to verify user details
• If wrong → raise to webSDK team
• If correct → raise to mobileSDK team

Security & Miscellaneous

Security

• Activities are not exported
• WebView is non-debuggable in release mode
• Application-level WebView security depends on client enforcement

Base64 vs S3 URLs

• WebSDK uses base64 for storing files
• Base64 strings are ~33% larger than the actual file
• Storing large base64s causes out-of-memory errors in native SDKs
• Ideal solution: use S3 URLs instead of base64

Analytics

• Step-wise analytics enabled
• All WebSDK HyperKYC events sent in webCore mode
• API calls include header made-from = "webCore"

Sentry

• Enabled for both Android and WebSDK in WebCore mode
• Clarity is enabled for WebCore mode

FAQs

Is WebCore enabled by default?

No. It must be enabled via the steps above.

Which screens come from native SDKs in WebCore mode?

Common misconception: only capture pages come from native. This is not true. For native modules (face, doc, NFC), everything — instructions, capture, retake, review, and API calls — is handled by the native SDK even in WebCore mode.

Who should I raise a query to when there's a WebCore issue?

Raise to MobileSDK team:

• Document, Face, NFC modules
• Web-view, Barcode detection
• Network issues in above modules
• Analytics
• Transition issues between modules
• Form module file upload component
• Background/foreground issues
• SDK keeps restarting after native modules
• SDK crashes abruptly

Raise to WebSDK team:

• Form module (except file upload)
• API module, Child modules
• Network issues in above modules
• Network retry screen
• SDK Response, Application Status
• FinishTransaction
• Resume Workflow (Local and CPR)
• Workflow/UI/text config fetching
• Condition execution, Conditional variables
• Back button, Previous Step
• Unexpected blank screens

VideoStatement V2 WebCore support

• Planned activities for VSV2 WebCore support
• Will use the existing VideoStatement V2 module in webSDK, opened in WebView
• iOS: available for iOS 15.0 and above
• Android: available for all Android versions supported by the SDK (≥ Android 5)
